FKS 1DP-PBM Meter for Air Pressure, Velocity and Flow Measurements

Measures Velocity, Diff / Gage Pressure, and Flow

FlowKinetics FKS 1DP-PBM meter

The FKS 1DP-PBM is a meter designed for air pressure measurement, air velocity measurement, and air flow measurement with on-board logging capabilities. The FKS 1DP-PBM meter has unmatched ease of use due to its prompt driven user interface and intuitive operation. It is the perfect companion for testing and balancing, velocity traverses, HVAC, process control, stack testing, R & D, pressure measurements across fans, filters, etc.

US Flag Designed and Assembled in the USA

Features

Specifications

Dimensions

5.7 in × 3.6 in × 1.8 in (14.5 cm × 9.1 cm × 4.5 cm)

Weight

0.67 lb (0.305 kg) excluding batteries

Working Temperatures

Operating: 32°F to 122°F (0°C to 50°C)

Storage: 14°F to 140°F (-10°C to 60°C)

Power supply

2 × 9V Alkaline batteries (life: approx. 30hours) or optional wall adapter (WPA) available as an accessory

Pressure

For available pressure ranges see ordering information

Measures True Differential, Static and Gauge Pressure using a fully temperature compensated sensor.

Zero offset and zero temperature shift: eliminated through auto-zero

Accuracy at 25°C: Typically within ±0.1% of full scale pressure (±0.22% max)

Maximum simultaneous pressure on both ports (above ambient):

  • 10 psi for sensors with a range of ±5 inH2O or below.
  • 15 psi for sensors with a range of ±12 inH2O or above.

Velocity / Flow

For available velocity ranges see ordering information

Corrected by user-defined flow pressure and temperature.

Using Velocity probe with user selectable flow coefficient

Accuracy at 25°C: Typically within ±0.24% of full scale velocity

K factor

Probe coefficient set by user. Range: 0.00 to 9.99

Density correction

Set by user (temperature and pressure)

Duct dimensions

(for on-board Pitot survey routine) up to 99.999ft

Damping

Automatic and adaptive. User selectable exponential smoothing or averaging

Manual logging

255 group IDs. 4,000 reading capacity

Automatic logging

255 group IDs. 6,000 reading capacity

Display

2-line variable contrast alphanumeric LCD

Pressure units

Pa, kPa, inH2O, mmHg, inHg, psi, mbar and lb/ft2

Velocity units

m/sec, ft/sec and ft/min

Flow units

m3/sec, ft3/sec, ft3/min

Compatible Mediums

Clean, dry, non-corrosive, non-flammable gases

Output

RS232 serial port interface, 9-pin connector. USB adapter (USBA or USBA2) available as an accessory.

Warranty

One year parts and labor.

SwiftLink Downloading Utility

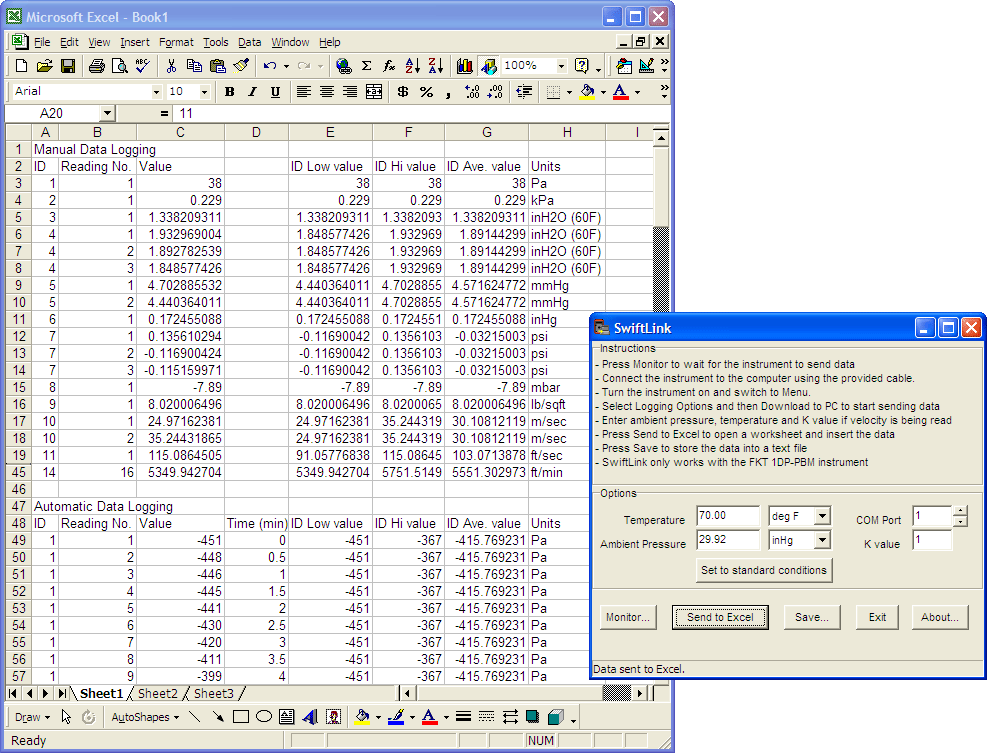

The FKS 1DP-PBM comes with SwiftLink to download its memory contents into a computer either directly into an Excel® worksheet or a text file. Output includes value, units, reading number, group ID, group average, group max value and group min value. Downloaded data is organized into two main sections: one for manual logging and one for automatic logging. Flow surveys are also retrieved as separate groups.

Click here to download SwiftLink Version 1.0.5.26 (March 6, 2007)

Requirements: Windows 95 / 98 / ME / 2000 / XP / Vista / 7 / 8. Excel 97 or later to transfer data directly to Excel.

SwiftLink software for FKS series meters

Pricing & Ordering Information

All prices are given in USD and are subject to change without notice. Please contact us about applicable discounts.

FKS 1DP-PBM meter
FKS 1DP-PBM meter

FKS 1DP-PBM -

Select Range:
Medium: Air at 20°C, 101.325 kPa Change...
Probe: Pitot-Static Change...
Duct size: 1m Dia Change...
  • Measure pressure, speed and flow (using probe survey)
  • One differential pressure transducer
  • On-board memory.
  • Auto-zero and overload venting valve
  • Serial cable (6 ft)
  • Protective rubber enclosure
  • Printed manual
  • Tubing
  • NIST-traceable calibration with data
  • Lead time: 2 weeks
$815.00

Quantity:

Accessories & Parts

Velocity and Flow probes

FKT series meter is compatible with all the Pitot-Static, S-type, RAP and Kiel probes we offer.

Click here to see available probes.

Meter Part Number Description Price

FKS 1DP-PBM-0.25

FKS 1DP-PBM Multi-Function Meter

Differential pressure range: ±0.25 inH2O (±62 Pa)

Velocity range: 0.5 to 10.2 m/s or 100 to 2004 ft/min

$815.00

FKS 1DP-PBM-0.5

FKS 1DP-PBM Multi-Function Meter

Differential pressure range: ±0.5 inH2O (±124 Pa)

Velocity range: 0.7 to 14.4 m/s or 142 to 2835 ft/min

$815.00

FKS 1DP-PBM-1

FKS 1DP-PBM Multi-Function Meter

Differential pressure range: ±1 inH2O (±248 Pa)

Velocity range: 1 - 20.4 m/sec or 200 to 4009 ft/min

$815.00

FKS 1DP-PBM-5

FKS 1DP-PBM Multi-Function Meter

Differential pressure range: ±5 inH2O (±1244 Pa)

Velocity range: 2.3 to 45.5 m/s or 448 to 8964 ft/min

$815.00

FKS 1DP-PBM-12

FKS 1DP-PBM Multi-Function Meter

Differential pressure range: ±12 inH2O (±2986 Pa)

Velocity range: 3.5 to 70.5 m/s or 694 to 13887 ft/min

$785.00

FKS 1DP-PBM-20

FKS 1DP-PBM Multi-Function Meter

Differential pressure range: -4 to +20 inH2O (-995 Pa to +4977 Pa)

Velocity range: 4.6 to 91.0 m/s or 896 to 17928 ft/min

$785.00
Accessory Description Price

PBM-WPA

Auto-switching power supply (100V-240V AC 50-60Hz)

US plug included

$40.00
Plug-EUR European plug for power supply $7.00
Plug-UK UK plug for power supply $7.00
Plug-AUST Australian plug for power supply $7.00

SwiftScan

Real time software for continuous monitoring of pressure and velocity using Microsoft Excel®

$95.00
CABLE6 Serial cable replacement - 6ft (1.8m) $10.00
CABLE50 Serial cable - 50ft (15.2m) - Contact us for custom lengths $30.00
USBA USB to serial adapter for computers with no serial port. Length: 1ft (30cm). Windows 98/2000/ME/XP. $25.00

Probes

Needed if you are measuring velocity or flow Link
Filter Kit Set of two 10-micron filters with replaceable elements. Includes a pack of 10 replacement filter elements. Useful for protecting the instrument in dirty environments. $50.00

All prices are given in USD.

Specifications and prices are subject to change without notice.

Please contact us about applicable discounts.

Email:
inform@flowkinetics.com

Tel: (979) 680-0659

Tel: (888) 670-1927

Fax: (979) 680-0659

Mailing Address:
FlowKinetics LLC
528 Helena Street
Bryan, Texas 77801 USA

Copyright © 2001-2017 • FlowKinetics™ LLC. • All rights reserved. • Privacy PolicySite Map

Medium:

Temperature: (-200 to 1250 °C)

Pressure: (2 to 30 psi absolute)

Select test configuration and dimensions.

Round Duct:

Diameter (D):

Rectangular Duct:

Width (W):

Height (H):

Open Area:

Max Insertion (H):

Duct or mounting wall thickness (if any):

Select probe that you want to use to measure speed or flow.


Pitot-Static Probe

General use for determining point flow velocity and flow rates from velocity surveys

More details...

Rapid Averaging Probe (RAP)

Designed for quickly measuring average flow speed or flow rates in ducts

More details...

S-Type Probe

Designed for measuring velocity in dirty flows such as smoke stacks.

More details...

Kiel Probe

Total pressure probe designed to measure velocity where the direction of flow changes considerably during testing

More details...

Select this if you want to use your own probe.

Flow coefficient =

Corrected Velocity=flow coefficient × Uncorrected Velocity

--------
